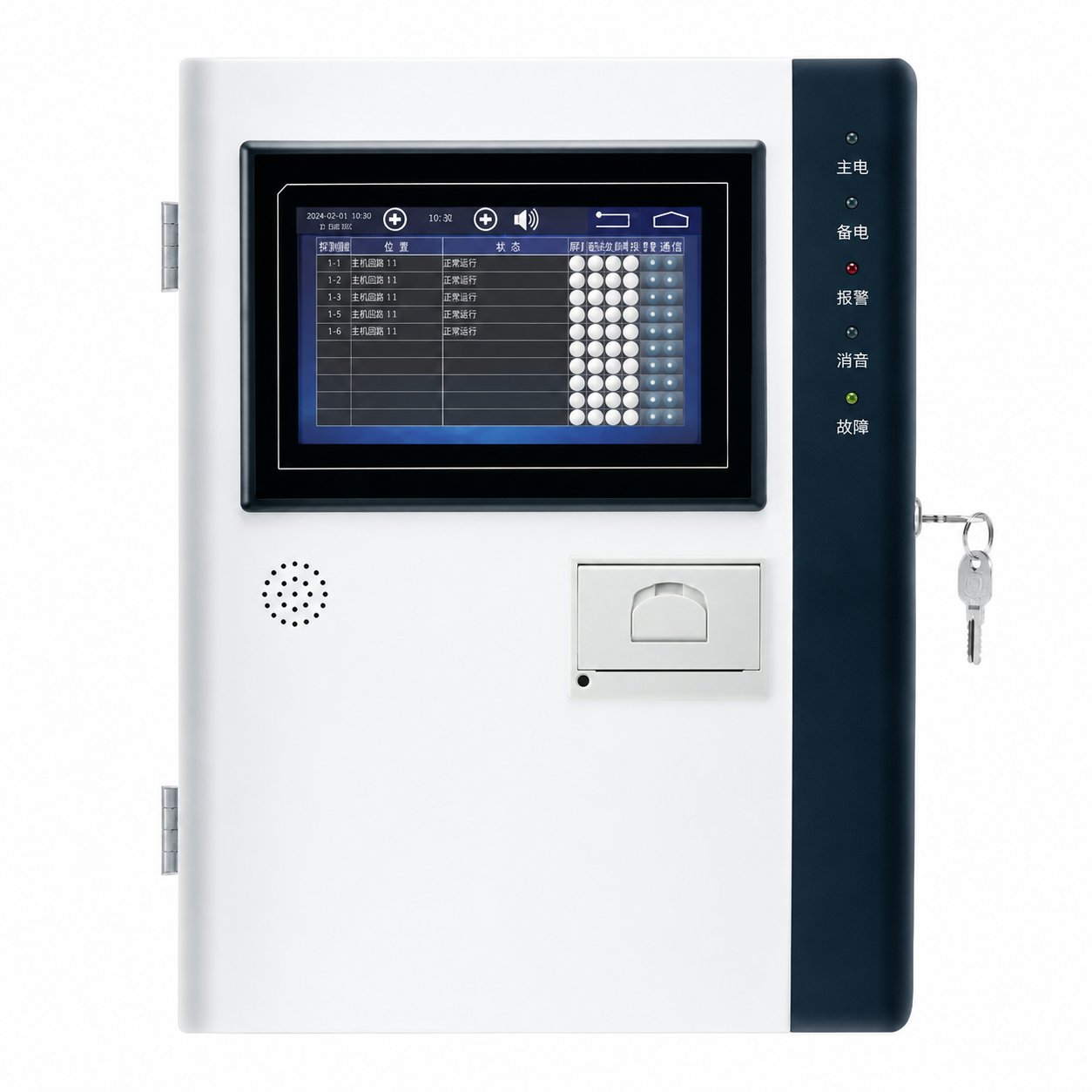

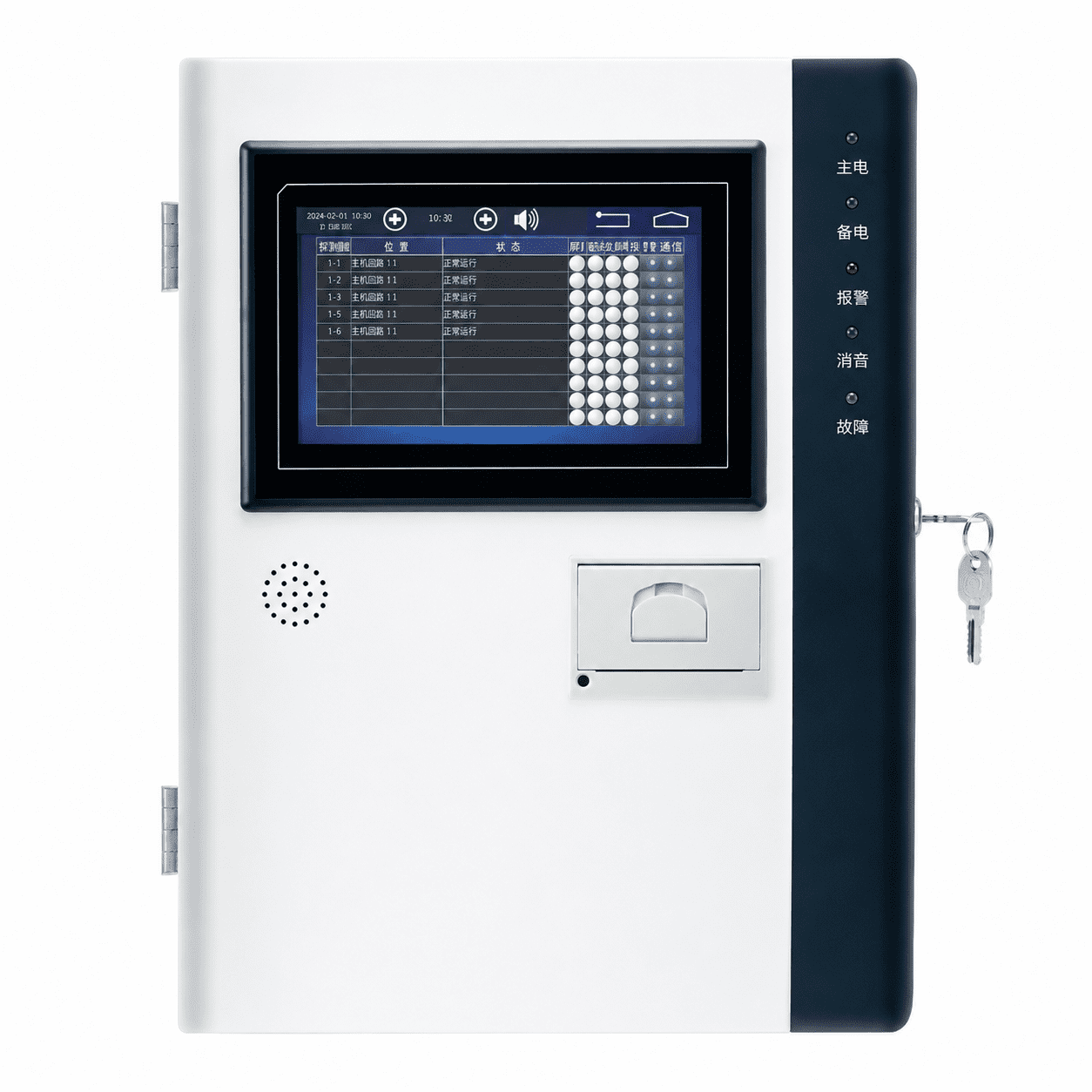

The ECBH011 air quality monitoring control panel is designed for centralized air quality monitoring, ventilation control, and fire safety system integration in commercial buildings, underground parking areas, and public infrastructure projects. Installed in fire control rooms, the system supports real-time monitoring, remote fan control, event storage, thermal printing, and integration with fire alarm systems for centralized environmental safety management.
Supports centralized monitoring of air quality controllers and ventilation system operating status.
Supports remote monitoring and control of connected ventilation and fan systems.
Equipped with touchscreen interface supporting data storage, query, and operational management.
Integrated thermal printer supports real-time event and status printing.
Supports connection of up to 127 air quality controllers through the two-wire communication bus.
Supports rolling storage of up to 10,000 historical records for system event tracking.
Built-in backup power maintains monitoring operation for more than 90 minutes during outages.
Supports integration with fire alarm control systems and upper-level control software platforms.
| Power Supply | AC220V |
| Printer | Micro Thermal Printer |
| Communication Method | Two-Wire Bus |
| Dimensions | 392 × 295 × 90 mm |
| Power Consumption | 50W |
| Maximum Connected Controllers | 127 |
| Historical Record Capacity | 10,000 Records |
| Backup Power Duration | >90 Minutes |
| Installation Method | Wall Mounted |
| Installation Location | Fire Control Room |
| System Functions | Monitoring / Remote Control / Data Query / Printing |
| Operation Interface | Touchscreen Interface |
| Ventilation System Monitoring | Supported |
| Remote Fan Control | Supported |
| Historical Event Storage | Supported |
| Control Software Integration | Supported |
| Fire Alarm System Integration | Supported |
| Model | Configuration |
|---|---|
| ECBH011 | Air Quality Monitoring Control Panel |
