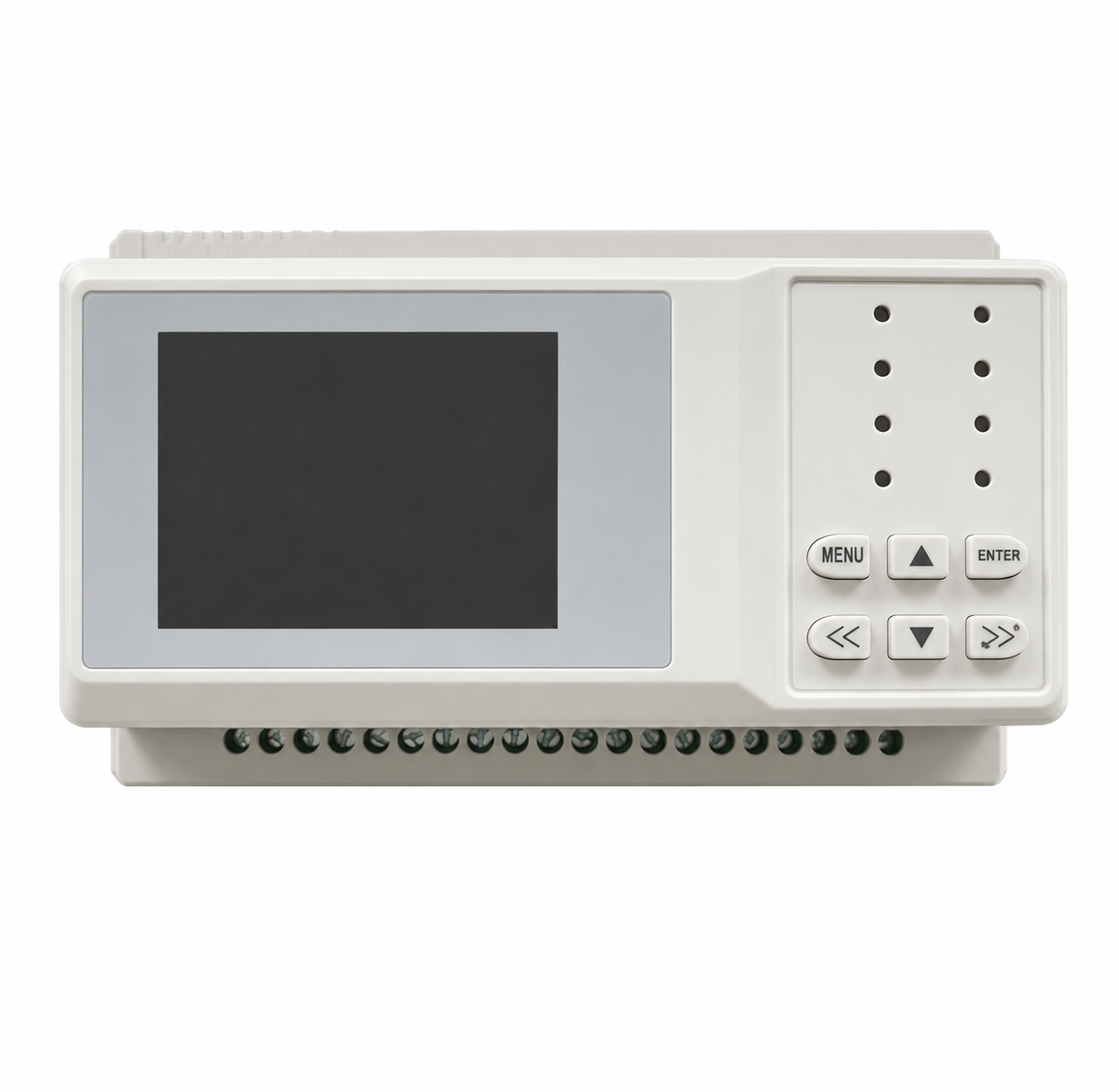

The ECBH012 air quality ventilation controller is designed for parking garage ventilation control and air quality management systems. Installed inside fan distribution cabinets, the controller receives carbon monoxide detector signals and automatically controls exhaust fans while monitoring detector and fan operating status for centralized environmental safety management.
Automatically controls exhaust and smoke extraction fans based on carbon monoxide detector signals.
Supports real-time monitoring of connected carbon monoxide detectors and fan operating status.
Built-in address coding function enables centralized device management and data collection.

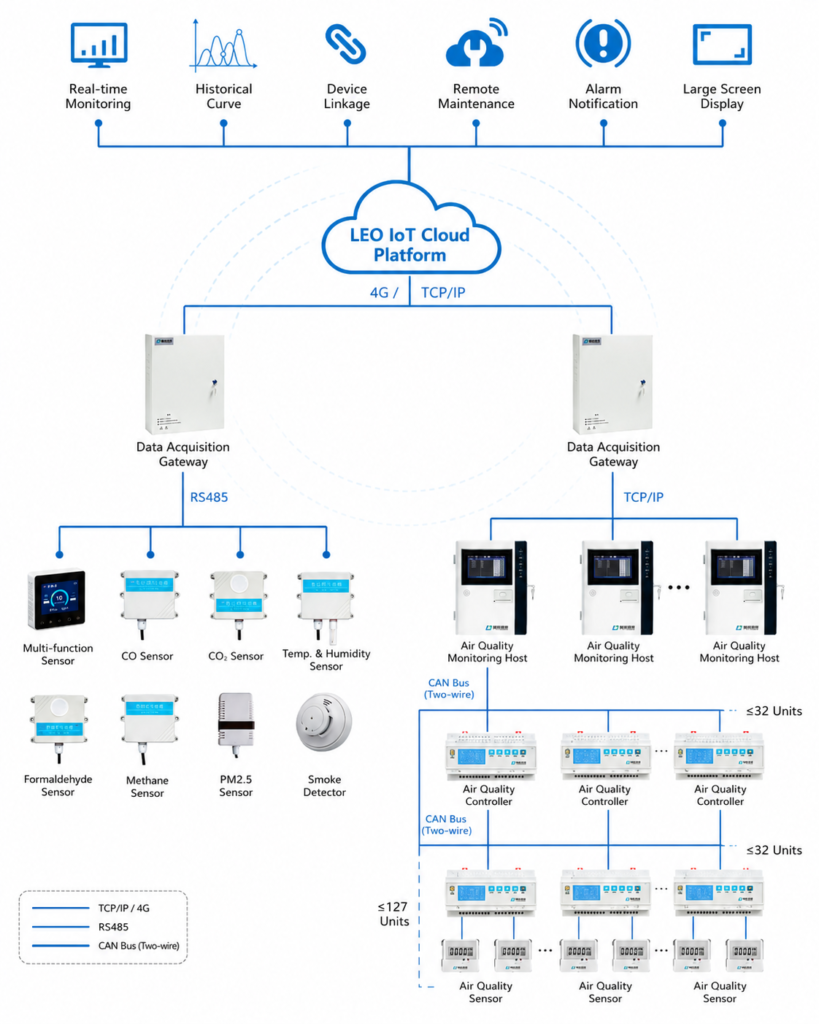

Transmits detector and fan operating data to the upper-level air quality monitoring host.
Standard 35 mm DIN rail installation designed for fan distribution cabinet integration.
Supports connection of up to 32 detectors for centralized ventilation control applications.
Provides dry contact DO output signals for ventilation fan linkage control.
| Power Supply | AC220V |
| Output Signal | Dry Contact DO Output |
| Installation Location | Inside Fan Distribution Cabinet |
| Installation Method | 35 mm DIN Rail Mounting |
| Power Consumption | 36W |
| Maximum Connected Detectors | 32 |
| Address Management | Supported |
| Fan Linkage Control | Supported |
| Detector Status Monitoring | Supported |
| Fan Operating Status Monitoring | Supported |
| Upper-Level System Communication | Supported |
| Ventilation Control Function | Automatic Fan Start / Stop Control |
| Model | Configuration |
|---|---|
| ECBH012 | Air Quality Ventilation Controller |
