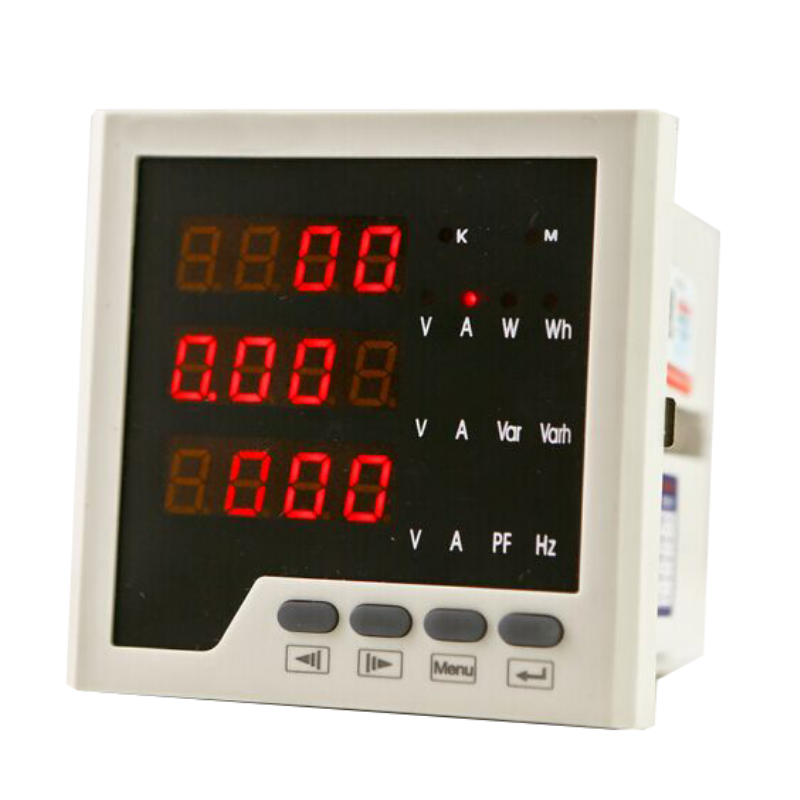

The ECBD006 series LED multifunction power meter is designed for embedded installation in switchboards and power distribution panels, providing three-phase electrical parameter monitoring, energy measurement, and remote communication functions. Compared with the ECBD005 series, the ECBD006 series adopts an LED digital display structure, making it more suitable for applications requiring clear long-distance visibility and fast on-site parameter reading in industrial distribution environments.
Supports automatic adaptation between MODBUS and DL/T645-2007 communication protocols.
LED digital display for real-time electrical parameter and energy data visualization.
Class 0.5 active energy measurement and Class 1 reactive energy measurement accuracy.
Equipped with RS485 communication interface supporting remote monitoring and centralized management.
Supports programmable digital input and alarm output linkage for remote status monitoring applications.
Selected models support demand display and harmonic monitoring functions.
Standard energy pulse output with pulse constant of 8000 imp/kWh.
Supports AC and DC wide-range power supply input for flexible installation environments.
Bolt-type current terminals help prevent loosening and reduce overheating risk caused by poor connections.
Embedded panel-mounted structure suitable for switchboards and power distribution panels.
| Energy Accuracy | Class 0.5 |
| Active Energy Accuracy | Class 0.5 |
| Reactive Energy Accuracy | Class 1 |
| Frequency Accuracy | ±0.2Hz |
| Communication Interface | RS485 / MODBUS-RTU |
| Communication Speed | 1200 ~ 38400 bps |
| Parity Mode | N81 / E81 / O81 |
| Operating Temperature | -10°C ~ +45°C |
| Storage Temperature | -25°C ~ +55°C |
| Ambient Humidity | ≤85% |
| Voltage Input | AC 5 ~ 500V |
| Voltage Overload Capacity | Continuous: 1.2× rated / Instantaneous: 2× rated for 1s |
| Voltage Consumption | <1VA per phase |
| Current Input | AC 20mA ~ 5A |
| Current Overload Capacity | Continuous: 1.2× rated / Instantaneous: 10× rated for 5s |
| Current Consumption | <0.4VA per phase |
| Frequency Input | 45 ~ 65Hz |
| Power Supply | AC220V / AC85~265V / DC100~300V |
| Power Consumption | <5VA |
| Energy Pulse Output | 8000 imp/kWh |
| Insulation Resistance | >100MΩ |
| Display Mode | LED Digital Display |
| Installation Method | Embedded Panel Installation |
| Overall Dimensions | 91 × 91 mm |
| Wiring Method | Three-Phase Three-Wire / Three-Phase Four-Wire |
| Protection Rating | Front Panel IP52 |
| Digital Input (DI) | 0 / 2 Channels |
| Digital Output (DO) | 0 / 2 Channels |
| Demand Display | Supported / Not Supported |
| Harmonic Monitoring | Supported / Not Supported |
| Alarm Output | Programmable Alarm / Remote Control Output |
| Digital Input Function | Passive Dry Contact Input |
| Communication Protocol | MODBUS-RTU / DL/T645-2007 |
| Measurement Functions | Energy / Demand / Harmonic Monitoring |
| Model | Configuration |
|---|---|
| ECBD00601 | Standard LED Multifunction Meter |
| ECBD00602 | DI Input Version |
| ECBD00603 | DI + DO Version |
| ECBD00604 | Harmonic Monitoring Version |
| ECBD00605 | Harmonic Analysis Version |
| ECBD00606 | Demand Monitoring Version |
| ECBD00607 | Demand + Harmonic Monitoring Version |
