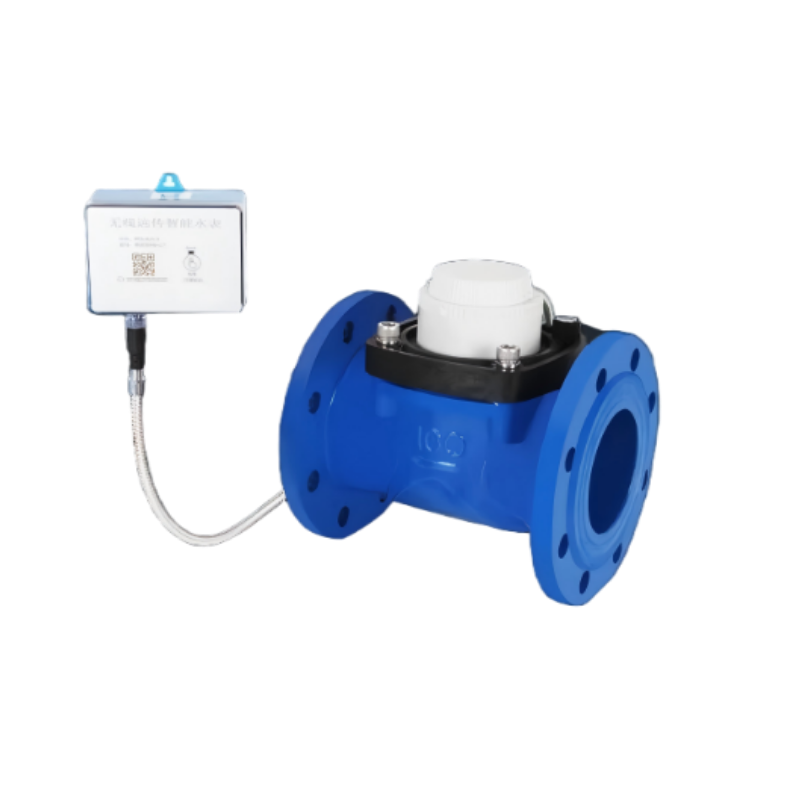

The ECBS006 large diameter LoRaWAN wireless water meter is designed for remote utility metering and wireless water consumption monitoring applications in commercial buildings, municipal water systems, industrial facilities, and large-scale pipeline networks. Using LoRa wireless communication technology, the meter supports long-distance wireless data transmission, scheduled data collection, and local deployment remote meter reading systems.
Supports LoRa-based wireless communication for long-distance remote meter reading applications.
Suitable for medium and large pipe diameter water metering applications from DN50 to DN300.
Low-power microprocessor design extends battery operating life for long-term field deployment.
Supports automatic wireless network access without manual configuration.
Supports scheduled data collection and real-time data acquisition modes.
Supports real-time battery voltage monitoring and status management.
Supports active reporting of daily water consumption data for the previous 30 days.
Supports online remote firmware upgrade functionality.
| Model | ECBS006 |
| Maximum Permissible Error | ±5% (Q1-Q2) ±2% (Q2-Q4) |
| Wireless Interface | LoRa |
| Cold Water Temperature | 0°C ~ 30°C |
| Hot Water Temperature | 0°C ~ 90°C |
| Working Pressure | ≤1MPa |
| Pipe Diameter | 50mm ~ 300mm |
| Operating Voltage | 3.6V |
| Communication Distance | 2~5Km |
| Electromagnetic Environment | Class E1 (CJ/T 224-2012) |
| Data Collection Method | Scheduled Data Collection / Real-Time Data Collection |
| Minimum Data Storage Time | Unlimited |
| Valve Control | No |
| Installation Method | Horizontal Installation |
| Installation Direction | Install horizontally with dial facing upward. Vertical meters should be installed vertically. |
| Flow Direction | Installation direction must follow the water flow arrow indication. |
| Pipeline Preparation | Flush the pipeline before installation to remove debris. |
| Installation Environment | Install in a dry environment with convenient maintenance access. |
| Recommended Installation | Installation inside a dedicated water meter box is recommended. |
| Valve Requirement | Install valves before and after the meter for maintenance convenience. |
