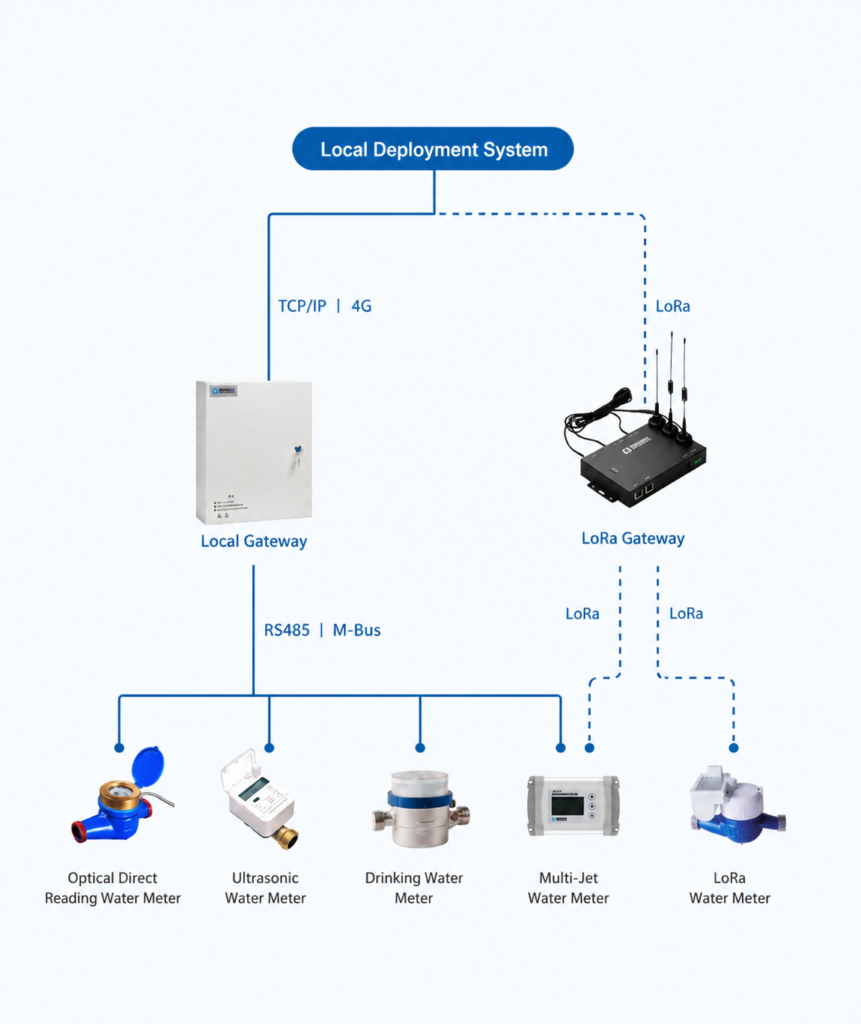

The ECBS011 IC card water control system is designed for prepaid water management and intelligent water consumption control applications in schools, factories, hospitals, dormitories, public bathrooms, and commercial facilities. Supporting flow-based and time-based billing modes, the system combines IC card payment management, consumption control, and remote communication functions for local deployment water management systems.
Supports both flow-based and time-based billing modes for different water usage scenarios.
Supports IC card consumption management with contactless MIFARE ONE card technology.
Supports separate enterprise subsidy wallet and personal balance wallet management.
Supports configurable daily consumption limits and single-use consumption limits.
Supports predefined free water allocation before entering the normal billing process.
Supports both IC card payment and QR code consumption modes.
Supports RS485 communication and optional 4G wireless communication.
Suitable for schools, factories, hospitals, public bathrooms, dormitories, and commercial water management applications.
| Model | ECBS011 |
| Power Supply | DC12V 3A |
| Static Power Consumption | <1.5W |
| Display | 4~6 Digit LED Display |
| Operating Temperature | -20°C ~ 70°C |
| Card Type | MIFARE ONE IC Card |
| Card Reading Frequency | 13.56MHz |
| Card Reading Time | ≤500ms |
| Card Reading Distance | 3~5cm |
| Daily Consumption Limit | $ 9000 |
| Single Consumption Limit | $ 9000 |
| Minimum Balance | $ 30 |
| Storage Capacity | 12000 Records |
| Data Storage | FLASH Data Storage, Data Retention after Power Loss |
| Blacklist Storage Capacity | 65535 Records |
| Communication Method | RS485 / Optional 4G Wireless |
| Dimensions | 145 × 102 × 44 mm |
| Pipe Diameter | 15mm / 20mm |
| Model | Structure Type |

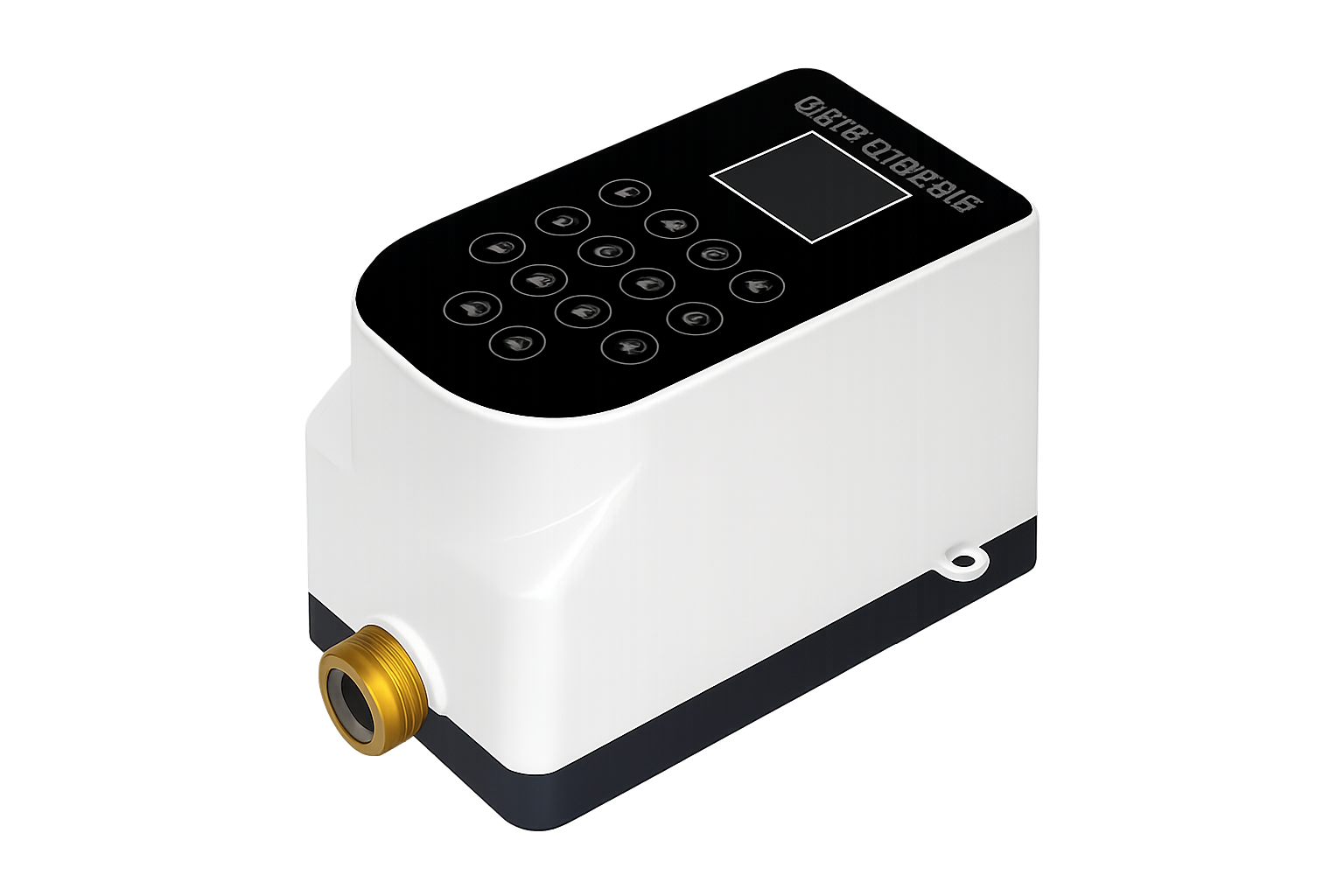

| ECBS01101 | Integrated Type |

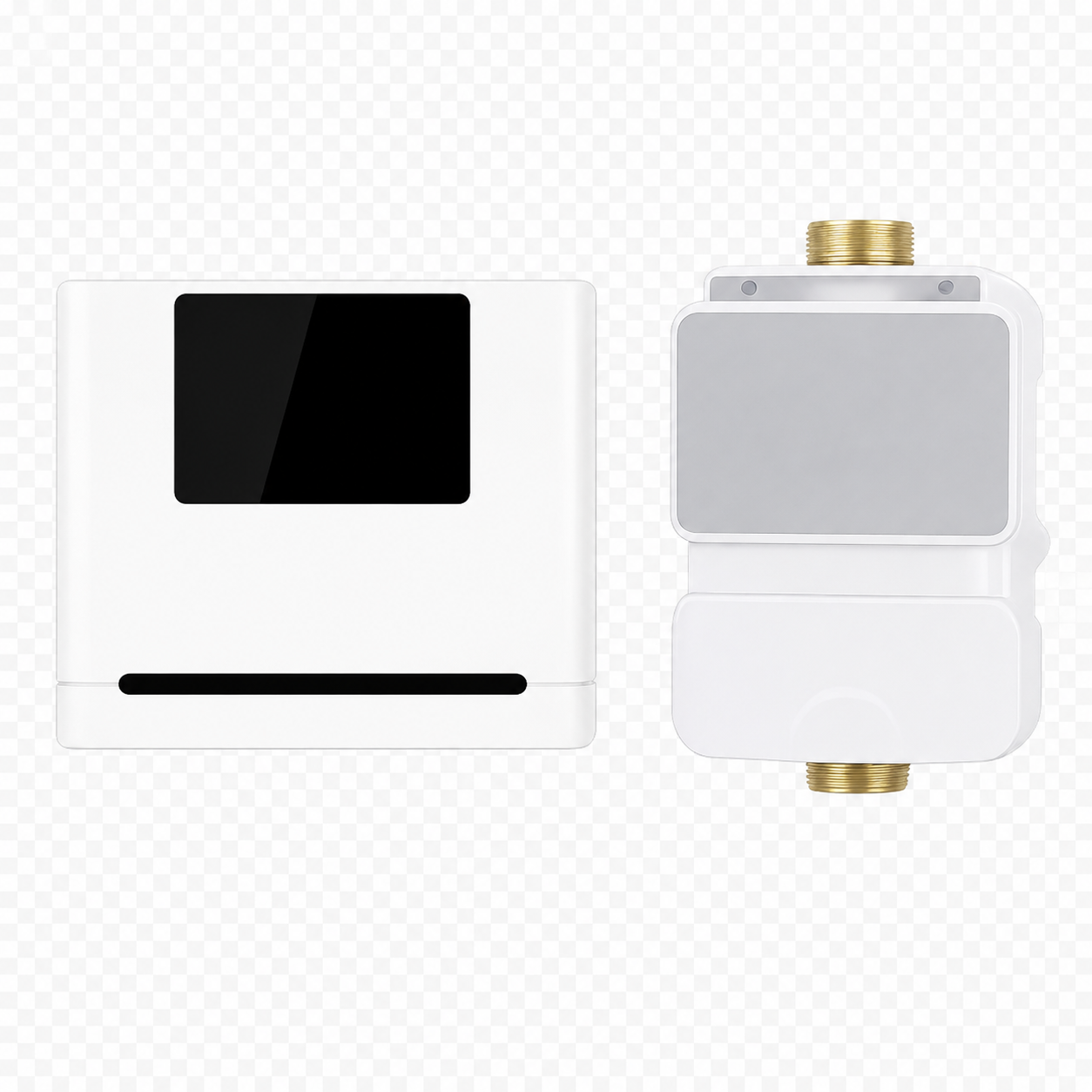

| ECBS01102 | Split Type |
