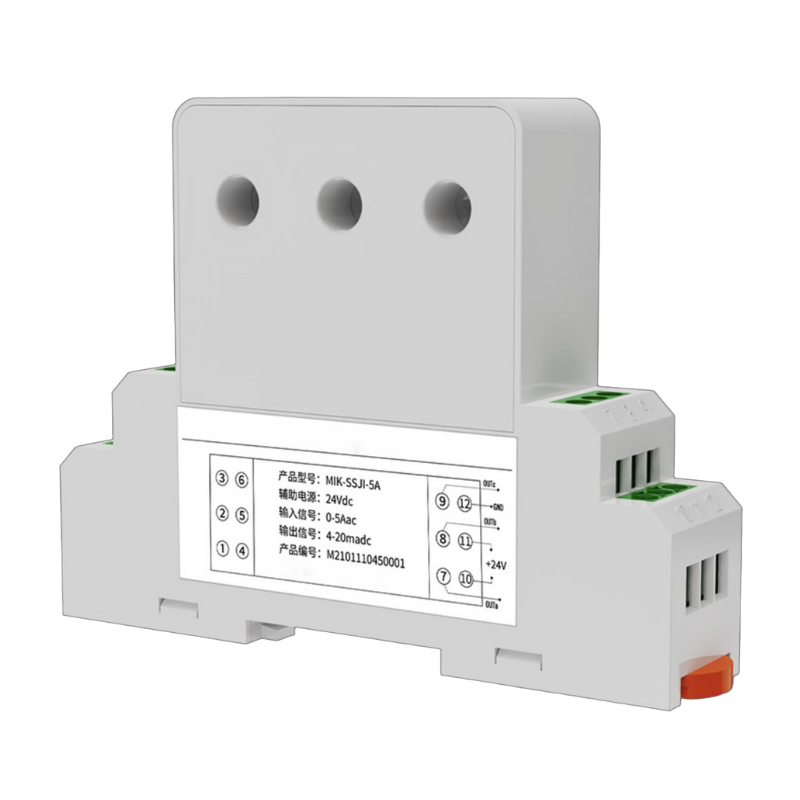

The ECBD014 three-phase AC current sensor transmitter is a device that converts AC current into standard DC current and outputs isolated analog or digital signals.
It is used for measuring three-phase AC current, and is especially suitable for power-frequency 50Hz sinusoidal three-phase AC current.
The product is widely applied in various locations where three-phase AC current measurement is required.
• 35mm standard mounting slot.
Adopts international standard DIN-rail mounting with a retractable locking clip for easier installation.
• High-quality pure copper coil.
Safer than copper-clad aluminum coils, with faster conversion speed and higher stability.
• High-quality wiring terminals.
Provide excellent electrical conductivity and corrosion resistance.
Comply with U.S. UL safety standards, using copper-zinc spring contacts for long service life.
• Imported operational amplifier chip.
Uses an imported U.S. IN chip, offering high stability and extended service life.
| Accuracy Class | Class 0.5 |
| Input Current Range | AC 1–30 A |
| Output Signal | 0–5 V / 0–10 V / 0–20 mA / 4–20 mA (optional) |
| Operating Temperature | −10 °C to +60 °C |
| Auxiliary Power Supply | +12 V / +15 V / +24 V (optional) |
| Input Frequency | 50 Hz |
| Load Capacity | Voltage output: ≥ 2 kΩ Current output: ≤ 250 Ω |
| Static Power Consumption | ≤ 0.5 W |
| Rated Power Consumption | ≤ 1.5 W |
| Insulation Withstand Voltage | DC 2500 V |
| Response Time | ≤ 300 ms |
| Temperature Drift Coefficient | ≤ 300 ppm / °C |
| Lightning Surge Protection | Power supply terminal: 2000 V Input terminal: 10000 A Output terminal: 500 V |
| Enclosure Material | Flame-retardant ABS |
| Mounting Method | DIN rail mounting |
