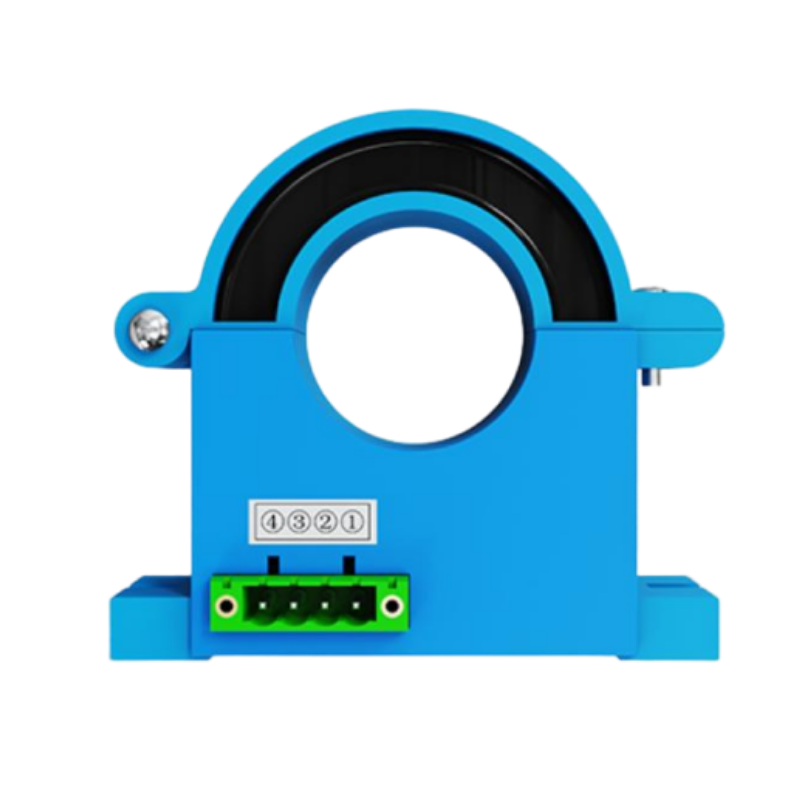

The ECBD015 split-core AC current transducer is designed for industrial load current monitoring and analog signal conversion applications. Featuring integrated split-core structure design, multiple analog output options, and industrial-grade protection functions, the device is suitable for generators, motors, HVAC systems, distribution cabinets, and equipment monitoring systems requiring stable current measurement and easy installation.
Integrates current transformer and current transducer into a single split-core structure for simplified installation.

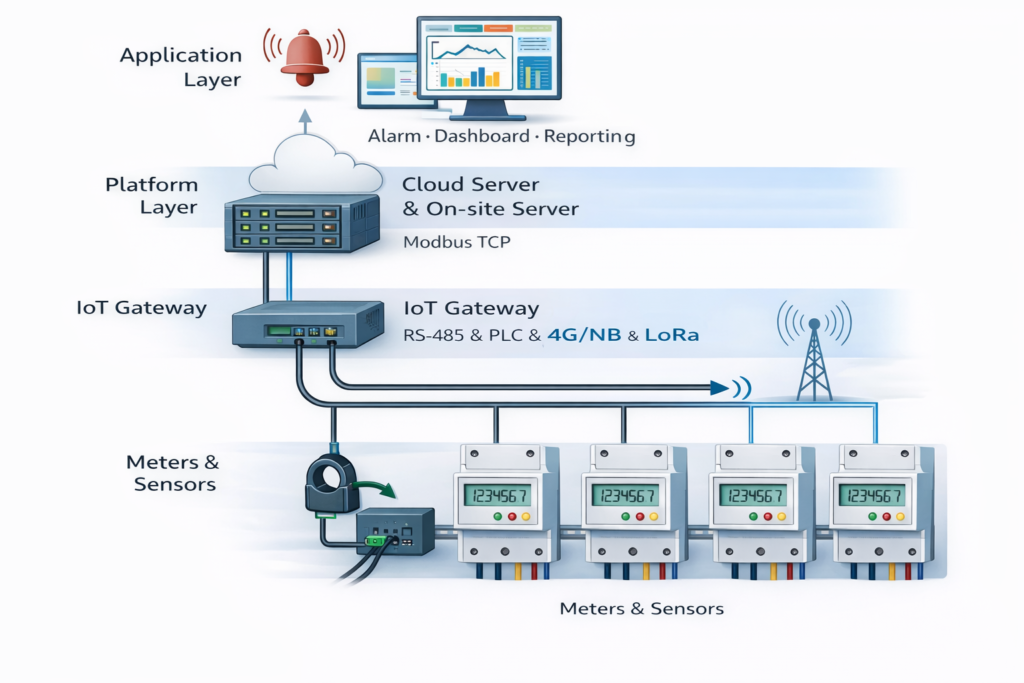

Supports multiple voltage and current analog output options for industrial automation and monitoring systems.
Provides Class 0.5 measurement accuracy for stable industrial current monitoring applications.
Includes overload protection, overcurrent protection, reverse polarity protection, and transient surge protection.
Multiple aperture sizes available for different cable and conductor installation requirements.
Fast response time suitable for real-time industrial load monitoring applications.
Suitable for generators, motors, low-voltage distribution cabinets, air conditioners, and fan systems.
Supports standard DIN rail mounting and flat screw fixing installation methods.
| Model | ECBD015 |
| Accuracy Class | Class 0.5 |
| Input Range | 0~200A / 0~300A / 0~400A / 0~500A / 0~800A / 0~1000A |
| Output Signal | 0-5V / 0-10V / 1-5V / 1-10V / DC0-20mA / DC4-20mA (Optional) |
| Operating Temperature | -10°C ~ +70°C |
| Storage Temperature | -25°C ~ +85°C |
| Aperture Size | 4 / 8 / 12 / 15 / 22 / 35 / 45 / 55 / 72 mm |
| Auxiliary Power Supply | DC24V / AC220V |
| Load Capacity | Voltage Output: 5mA Current Output: 6V |
| Bandwidth | 20Hz ~ 5kHz |
| Insulation Withstand Voltage | 3kV / 50Hz, 1 min |
| Response Time | <250ms |
| Mounting Method | 35mm DIN Rail Mounting + Flat Screw Fixing |
