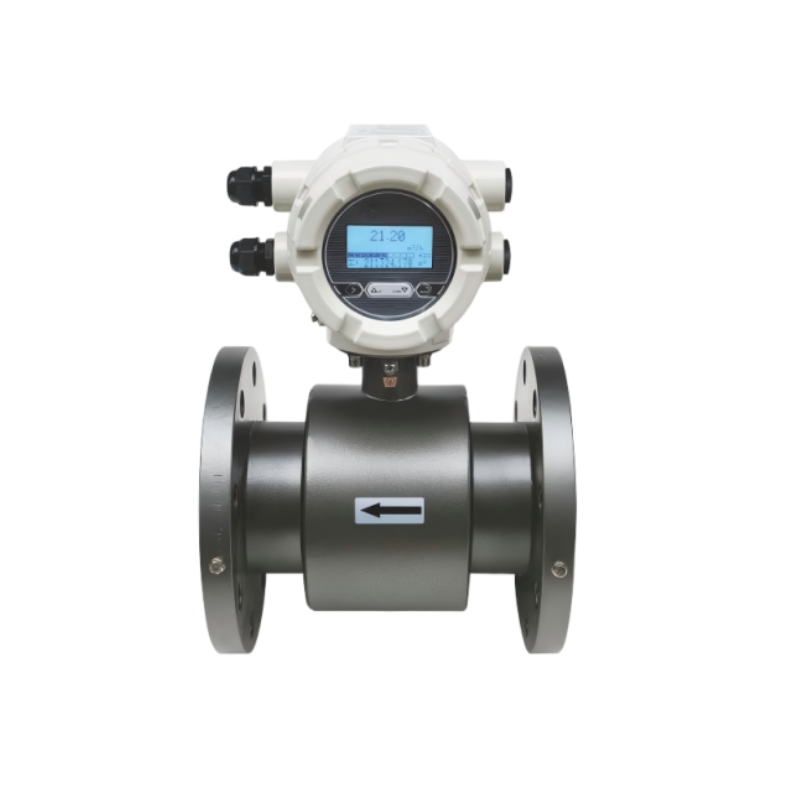

The ECBS012 electromagnetic flowmeter consists of two main components: a sensor and a converter. The sensor includes a measuring tube, electrodes, excitation coils, magnetic core, and housing.
The converter amplifies, processes, and calculates the flow signals, enabling the display of instantaneous flow rate and cumulative flow. It can also output pulse signals and analog current signals for flow measurement and process control applications.
Equipped with an intelligent converter, the flowmeter not only provides measurement and display functions but also supports remote data transmission, wireless control, and alarm functions, making it suitable for modern industrial flow monitoring systems.
• Excellent measurement repeatability and linearity.
• High reliability and strong anti-interference performance.
• Robust pressure resistance and sealing performance.
• Low pressure loss measuring tube design.
• High level of intelligence and system integration capability.
• Maintenance-free operation.
| Maximum Permissible Error | ±0.5%; ±1% (≤ DN20) |
| Output Signal | 4–20 mA; Pulse / Frequency output: 2 kHz (default), up to 5 kHz (maximum) |
| Ambient Temperature | –10°C to +55°C |
| Flow Velocity Range | 0 – 10 m/s |
| Nominal Diameter | DN15 – DN1200 (custom sizes available upon request) |
| Medium Conductivity | ≥ 30 μS/cm |
| Nominal Pressure | 1.0 / 1.6 / 2.5 / 4.0 MPa (other pressure ratings available upon request) |
| Medium Temperature | 0 – 80°C (CR neoprene rubber lining) –25 – 120°C (PTFE lining) –10 – 180°C (PFA lining) –20 – 60°C (PU lining) |
| Power Supply Voltage | 110 / 220 VAC (100–240 VAC), 50 / 60 Hz; 24 VDC ±10% |
| Power Consumption | ≤ 15 W |
| Cable Entry | M20 × 1.5 (standard nylon waterproof cable gland; optional explosion-proof metal cable gland) |
| Electrode Type | Insertion type |
| Enclosure Material | Carbon steel / Stainless steel |
| Installation Method | Horizontal or vertical installation |
