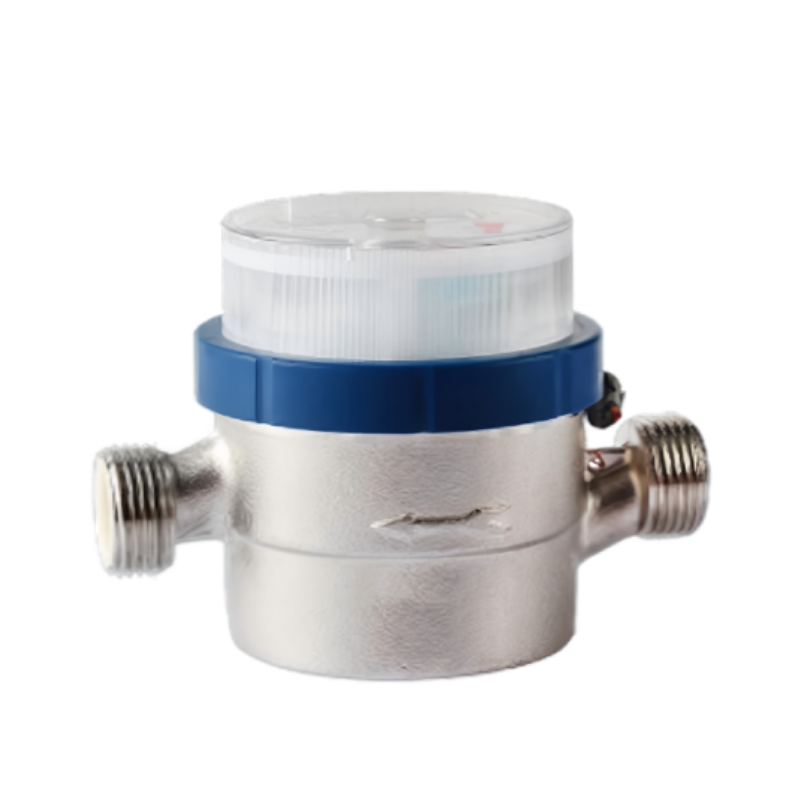

The ECBS009 remote drinking water meter is designed to measure and record the total volume of potable water flowing through water supply pipelines. The measured consumption can be converted into digital signals for transmission.
Through handheld data collectors or existing communication networks, the meter enables remote meter reading, monitoring, and management, improving operational efficiency in water consumption monitoring.
• Measures total purified water consumption using the piston rotary metering principle.
• The counter adopts vacuum sealing technology, ensuring clear and durable readings over long-term operation.
• Manufactured with high-quality materials, providing reliable performance, low starting flow rate, and high measurement accuracy.
• Stainless steel meter housing, offering a durable structure and attractive appearance.
• Equipped with a magnetic-sensitive sensor for stable and reliable signal detection.
• Optional remote pulse output function available according to user requirements.
| Maximum Permissible Error | ±5% (Q1–Q2); ±2% (Q2–Q4) |
| Wired Interface | RS485 / M-BUS |
| Communication Protocol | Default: CJ/T188 standard protocol Optional: DL/T645, Modbus (standard), or other protocols upon request |
| Temperature Range | 0°C – 50°C |
| Material | Stainless steel |
| Maximum Operating Pressure | ≤ 1 MPa |
| Pipe Diameter | 8 mm |
| Power Supply | DC 12 V |
| Overload Flow Rate | 1.25 m³/h |
| Minimum Flow Rate | 6 L/h |
| Installation Method | Horizontal installation |
| Installation Guidelines | • The meter must be installed horizontally, with the dial facing upward and the arrow aligned with the direction of water flow. • Flush the pipeline before installation to remove debris. • Install the meter in a dry environment with convenient access for maintenance and replacement; installation inside a dedicated water meter box is recommended. • Install valves before and after the meter to facilitate maintenance and system control. |
