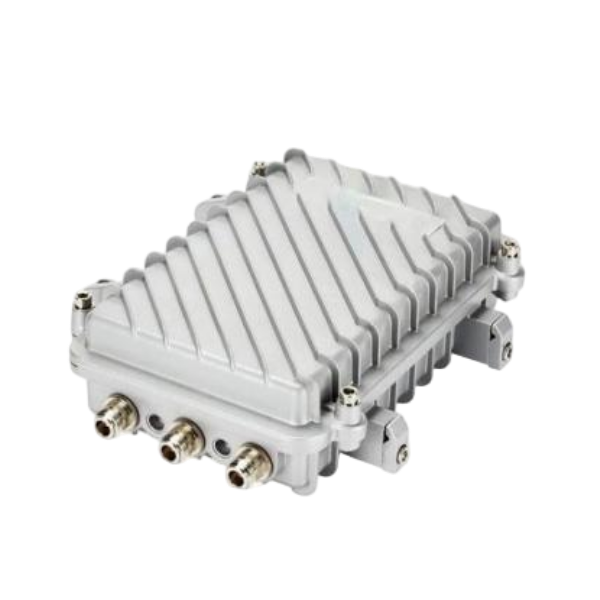

A LoRa Gateway—also known as a LoRa Base Station or LoRa Concentrator—is a gateway device that enables long-range data transmission using LoRa wireless modulation technology. Positioned at the core of a LoRa star network, it serves as the communication bridge between end devices and the server.
As a multi-channel transceiver, it handles data exchange with LoRa communication terminals and establishes data connections through a self-organizing network.
This LoRa Gateway is designed for application environments featuring challenging power supply conditions, wide coverage areas, high wiring costs, and high maintenance demands.
• Multi-network backhaul, supporting Wi-Fi, LTE, and RJ45 Ethernet
• High access capacity, supporting more than 10 million data packets per day
• Wired interface supporting Modbus/RS485; compatible with various RS485 sensors; RS485 circuit adopts full electrical isolation with triple lightning and ESD protection; compliant with GB/T 17626.5-2008 10/700 μs test, highest level 4 kV
• Local management with built-in web configuration; supports customizable HTTP configuration protocol
• Standard protocols supporting LoRaWAN Class A/C
• High concurrency with 8 uplink channels and 1 downlink channel
• Remote operation and maintenance; supports remote SSH debugging; built-in hardware watchdog; supports SNMP protocol
• Edge computing capability with built-in NS parsing server and local device linkage
• IP65 protection rating, suitable for outdoor installation
| Processor | Not applicable |
| Acquisition Interfaces |
1 × LoRa interface (8 uplink channels, 1 downlink channel) 1 × RS485 interface (supports up to 32 devices) |
| Network Interfaces |
1 × WAN port with PoE support 1 × LAN port |
| Supported Device Capacity | ECSL003A: ≥ 1000 devices ECSL003B: ≥ 3000 devices |
| ECSL003A | ECSL003B | |
|---|---|---|
| Operating Power Supply | DC 12 V power supply | DC 12 V power supply / PoE power supply, optional battery |
| Operating Power Consumption | < 8 W | < 15 W |
| Coverage Radius | 1 km | 1–3 km |
| Transmit Power | Up to 20 dBm (100 mW), multi-level adjustable | Up to 27 dBm (500 mW), multi-level adjustable |
| Wireless Frequency Band | 470–510 MHz | 470–510 MHz |
| Receiver Sensitivity | −130 dB @ SF10 | −130 dB @ SF10 |
| Operating Temperature | −40 °C to +85 °C | −40 °C to +85 °C |
| ECSL003A | ECSL003B | |
|---|---|---|
| Protection Rating | IP20 | IP65 |
| Installation Method | Wall-mounted installation | Wall-mounted installation |
