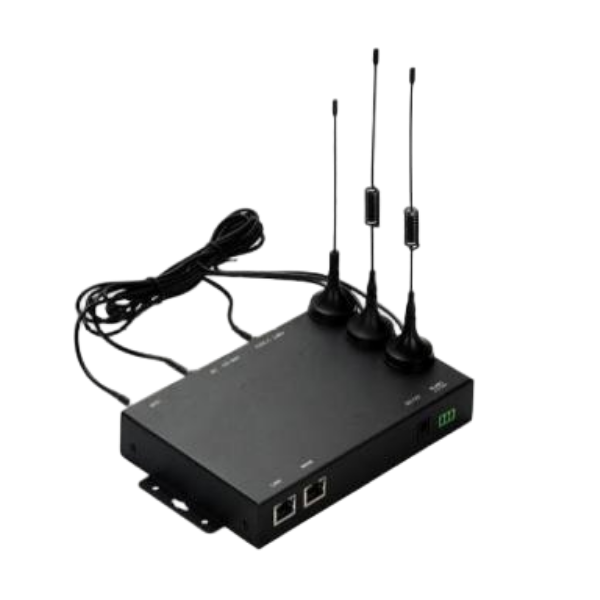

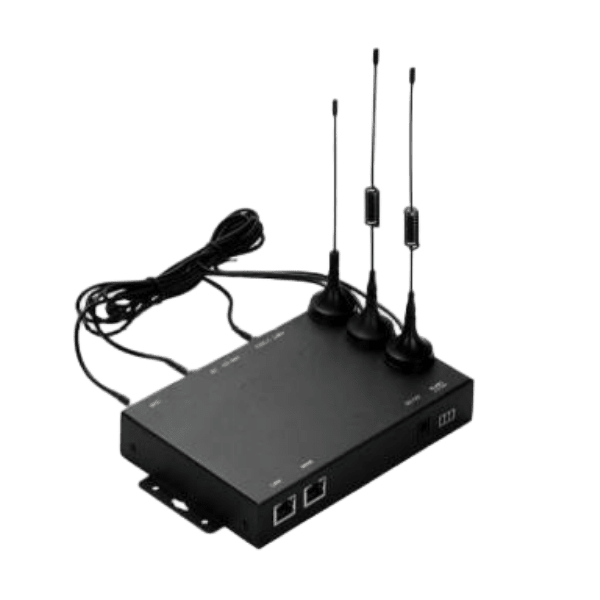

A LoRa Gateway—also known as a LoRa Base Station or LoRa Concentrator—is a gateway device that enables long-range data transmission using LoRa wireless modulation technology. Positioned at the core of a LoRa star network, it serves as the communication bridge between end devices and the server.
As a multi-channel transceiver, it handles data exchange with LoRa communication terminals and establishes data connections with these terminals through a self-organizing network.
This LoRa Gateway is designed by our company to address application scenarios featuring difficult power supply conditions, large coverage areas, high wiring costs, and high maintenance costs.
• Multiple backhaul options: supports Wi-Fi, LTE, and RJ45 Ethernet backhaul
• High access capacity: supports more than 10 million data packets per day
• Wired interface: supports Modbus/RS485 protocol; compatible with external RS485 sensors; RS485 circuit uses full electrical isolation with triple lightning/ESD protection; compliant with GB/T 17626.5-2008 10/700 µs test, highest protection level 4 kV
• Local management: supports local web configuration; customizable HTTP configuration protocol
• Standard protocols: supports LoRaWAN Class A/C
• High concurrency: 8 uplink channels and 1 downlink channel
• Remote maintenance: supports remote SSH debugging; built-in hardware watchdog; supports SNMP protocol
• Edge computing: built-in NS parsing server with local device linkage capability
| Processor | None |
| Acquisition Interfaces | 1 × LoRa interface (8 uplink channels, 1 downlink channel) 1 × RS485 interface (supports up to 32 devices) |
| Network Interfaces | 1 × WAN port with PoE support 1 × LAN port |
| Supported Device Capacity | ≥ 1000 devices |
| Operating Power Supply | DC 12 V power supply |
| Operating Power Consumption | < 8 W |
| Coverage Radius | Up to 1 km |
| Wireless Frequency Band | 470–510 MHz |
| Receiver Sensitivity | −130 dB @ SF10 |
| Transmit Power | Up to 20 dBm (100 mW), multi-level adjustable |
| Operating Temperature | −40 °C to +85 °C |
| Protection Rating | IP20 |
| Installation Method | Wall-mounted installation |
