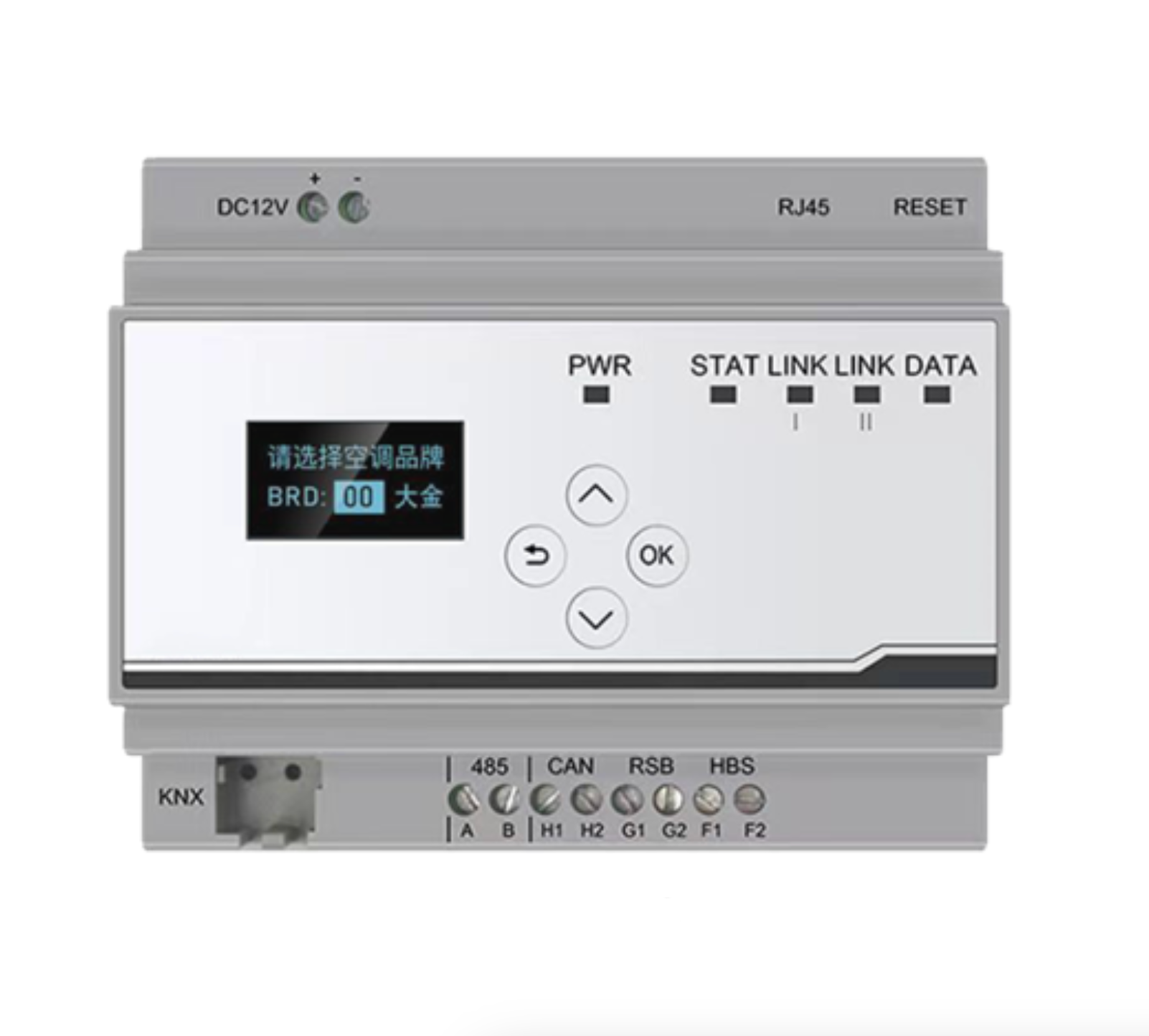

The ECBK005 VRV Air-Conditioning Control Gateway is designed for centralized monitoring, control, and data acquisition of VRV/VRF air-conditioning systems. It enables indoor unit status monitoring, remote control, centralized HVAC management, and system integration for commercial buildings, hotels, apartments, and office environments.
The gateway supports integration with mainstream VRV air-conditioning brands and can be integrated into building automation and energy management systems.
Supports connection to major VRV and VRF air-conditioning brands.
Provides real-time acquisition and monitoring of indoor unit operating status.
Supports remote control and management of indoor air-conditioning units.
Allows remote locking and operational restriction of indoor units.
Enables centralized intelligent control and management of VRV systems.
One gateway can be deployed for each outdoor VRV unit group.
Can be integrated into building management and HVAC energy monitoring platforms.
Compact DIN rail mounting design for simplified installation inside control cabinets.
| Model | ECBK005 |
| Product Type | VRV Air-Conditioning Control Gateway |
| Power Supply | DC 9~24V (Recommended 12V / 1A) |
| Power Consumption | 1W |
| Dimensions | 105 mm × 87 mm × 58 mm |
| Operating Temperature | -20℃~85℃ |
| Operating Humidity | 30%~90% |
| Installation Method | Standard DIN Rail Mounting |
| Flammability Rating | V0 |
| Maximum Indoor Units | Up to 64 Indoor Units |
| Maximum System Quantity | Up to 4 Systems |
| Application | VRV / VRF Air-Conditioning Monitoring and Control |
