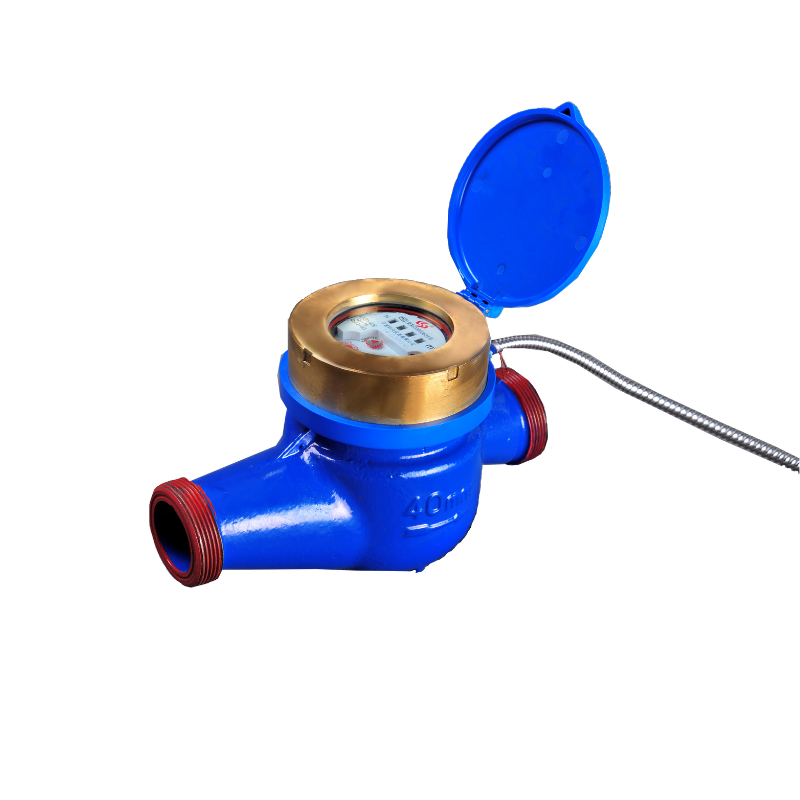

The ECBS001 series photoelectric direct-reading remote water meter is designed to measure and record the total volume of potable water flowing through municipal water pipelines. The measured water consumption can be converted into digital signals and transmitted for remote data collection.
Through handheld data collectors or existing communication networks, the system enables remote meter reading, monitoring, and management, improving efficiency and accuracy in water usage management.
• Dry-dial structure design.
• Clear and easy-to-read dial that maintains long-term readability.
• Photoelectric encoded passive direct-reading technology.
• Data output via RS485 bus or M-BUS bus.
• Non-contact sensing technology that does not affect meter performance.
• Low-power design, requiring power supply only during data reading.
• Can be integrated with a host system to realize remote meter reading and management.
• High measurement accuracy, up to R200.
• Optional valve control function, allowing terminal systems to remotely control water supply by opening or closing the valve.
| Permissible Measurement Error |
Flow range Q1–Q2: ±5% Flow range Q2–Q4: ±2% |
| Communication Interface | M-BUS / RS485 |
| Communication Protocol |
CJ/T 188-2004 (Technical Specifications for Data Transmission of Household Metering Instruments) DL/T 645-1997 Modbus communication protocol Other protocols available upon agreement |
| Wireless Interface | Not available |
| Water Temperature (Cold Water) | 0–30 °C |
| Water Temperature (Hot Water) | 0–90 °C |
| Maximum Operating Pressure | ≤ 1 MPa |
| Nominal Pipe Diameter | DN15–DN40 |
| Communication Baud Rate | 1200 / 2400 / 4800 / 9600 bps |
| Maximum Communication Distance | ≤ 300 m |
| Operating Current |
M-BUS bus: 1.0–1.3 mA RS485 bus: 0.6–0.8 mA |
| Operating Voltage |
M-BUS bus: DC 36 V RS485 bus: DC 12–24 V |
| Minimum Data Retention Time | Unlimited |
| Electromechanical Conversion Error | ≤ ±1 minimum conversion scale value |
| Valve Control Function | Not supported |
| Wiring Method |
M-BUS bus: connected using a standard two-core cable, polarity-free. RS485 bus: connected using a standard four-core cable, with two cores for power supply and two cores for signal transmission. |
| Recommended Cable Type |
M-BUS bus: RVSP 2 × 1.0 mm² shielded twisted pair cable RS485 bus: RVSP 4 × 1.0 mm² shielded twisted pair cable |
